Window Air Conditioner

The window air conditioner is the simplest type of AC that's installed into a window of a room and designed to cool that specific room. It contains all the components assembled in one compact box.

An evaporator coil cools the room while a condenser coil releases hot air outside.

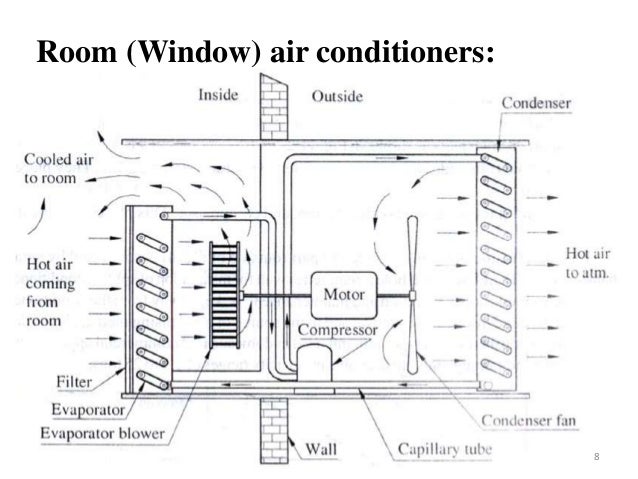

Construction & Working

-It is a plug-In type of unit i.e. all the component is fitted in a single unit only.

-Evaporator and condenser are fitted at the opposite end and compressors are fitted in middle.

-In the front part, there is two-compartment one is for supply and the other is for return air.

-The blower is fitted behind the evaporator to blow air inside the room. It takes air from the return air section and it passes through the coil then enters the room. The filter is also used across the coil to remove impurity from the air.

-To remove heat from condenser, the fan is used across the condenser coil. It takes air from the side (Opening in unit) and blows over the condenser coil.

-The blower which is used across the evaporator and fan used across condensers are run by a single motor, which speed is controlled by control penal.

-The control penal has three knobs,

One control the speed of blower which run at two speed i.e. at high speed and low speed

The second knob is for thermostat which is placed in return airside, from where the air is sucked in a unit from the room. It helps users to set temperature.

The third knob operates flap in the insulated cabinet for ventilation.

Why Window AC installed with tilt?

-No drain pump is there in the unit, so condensate water will flow through gravity

That’s a region unit that is installed with a tilt towards outside.so that water from drain pan comes out.

This angle should be 3 to 5 Degree.

Things to be taken care

-Condensor should not be directly exposed to sunlight.

-The gap between the wall and the unit to be filled.

-Suitable power supply to be provided.

-There should be no obstruction on the side of the unit.

Benefits of Using a Window Air Conditioner

-Easy to install and operate

-Low cost

-Can Be Used in Many Places.

-does not take much space

Limitation of WAC

-Power consumption is high

-Noisy

-Most of WAC does not provide heating

-No provision for humidification

-Uneven Cooling in the room

-Available in limited capacities.

Things to be taken care of during Purchase

As we know the servecing and reparing charges for ac is very high and if any part like compression got damaged it will cost a lot

So before purchase check following thing

-Capacity as per room

-Star rating

-Warranty on ac and compressor

-power consumption

-Service network of that OEM

Best Brands for Window AC

-Bluestar

-O-General

-Voltas

-Hitachi
